3D Laser scanner

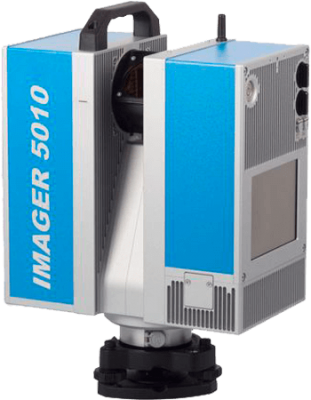

Z+F IMAGER® 5010 series
The Z+F IMAGER® 5010 3D Terrestrial Laser Scanner is a high-end device that provides maximum flexibility without any compromise, meeting the highest quality standards in high-resolution 3D data detection in all fields.
Thanks to its state-of-the-art features, it is ideal for performing close to medium range operations.
With Z+F IMAGER® 5010 you can get what you used to have using only two different devices with a single laser scanner.
The advantages of choosing the Z+F IMAGER® 5010 series
Characteristics
Range 187 m
Its nominal range of 187 m. for the wavelength, allows the Z+F IMAGER series 3D terrestrial laser scanner to be used with maximum efficiency in almost all terrestrial operations.
High speed 1 million pixels/sec
Highest quality of data
The Z+F IMAGER Series 3D Terrestrial Laser Scanner #5010 stands out for its high accuracy of angular measurement and distance. In addition, thanks to its low measurement noise, it can achieve the highest quality of data collected over a long distance and on different types of surfaces.
3D Laser scanner Z+F IMAGER® 5010 series
Technical Data Sheet
3D Laser scanner Z+F IMAGER® 5010 series:

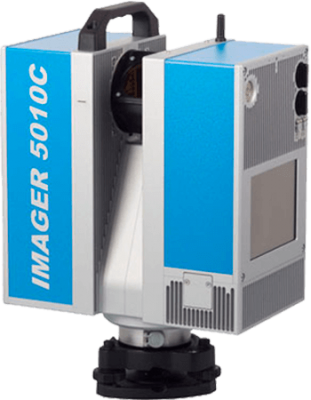

Z+F IMAGER® 5010C
The Z+F IMAGER® 5010C is one of the most reliable and stable 3D laser scanners you will find on the market.
In addition to its high precision, the relief system is characterized by its HDR camera, which captures high-resolution, parallax-free color data, allowing you to view homogeneous color information.
Thanks to the Z+F IMAGER® 5010C laser scanner. 5010C, the HDR image is generated in the software Z+F LaserControl® and automatically combined with the point cloud. This feature is a great advantage over the manual method because it allows a quick and easy 3D documentation of the surrounding area, even without previous knowledge in the field of photography.
HDR camera
Focus area 1 m - ∞
Number of images for panorama: 42
Recording time: approx. 3:30 min.
Panorama resolution: approx. 80 mpixel
3D Laser scanner Z+F IMAGER® 5010 series:

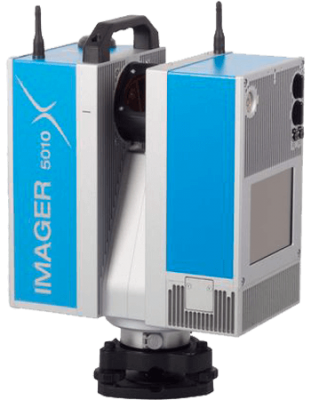

Z+F IMAGER® 5010X
The Z+F IMAGER® earthly 3D laser scanner is the first 5010X in the industry to have a positioning system that works both indoors and outdoors.
The Z+F IMAGER® laser scanner 5010X will track your movements while transporting the device and provide the estimated location for the recording process.
Thanks to the Z+F LaserControl® software Scout and the new 3D laser scanner Z+F IMAGER 5010X, Zoller + Fröhlich starts a real revolution in the world of laser-scanning with the Blue Workflow and automatic recording in the field!
Blue workflow®
Verification of data and target
Real-time recording on site
Multi-scanner support
HDR camera
Focus area 1 m - ∞
Number of images for panorama: 42
Recording time: approx. 3:30 min.
Panorama resolution: approx. 80 mpixel
3D Laser scanning software Z+F IMAGER® 5010 series
Z+F LaserControl®
With the laser scanners from Z+F LaserControl® Office e Scout you can work efficiently and comprehensively.
The wide range of filters, measurement and recording tools available, are the best solution for highly differentiated data processing to filter, record and color 3D point clouds.
The different export formats provided by Z+F LaserControl® allow you to import data in all popular 3D software applications and process them further.
Accessories 3D Laser scanner 5010 series
Z+F T-Cam
The Z+F T-Cam infrared camera allows you to film rooms and objects not only three-dimensionally but also thermally.
The instrument generates 360º thermal panoramas with a resolution of 382 288 pixels.
Infrared information is automatically mapped to the point cloud. The infrared spectral range is 7.5 to 13 μm.
Z+F T-Cam opens many new opportunities in the field of insurance, facility management, industry and forensics.
The Z+F T-Cam is easy to mount and connects to the scanner via USB.
Accessories 3D Laser scanner 5010 series

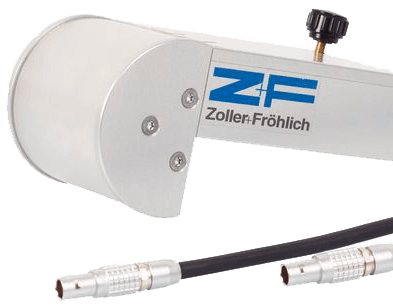

Z+F SmartLight
The Z+F SmartLight is the ideal tool for the i-Cam of the Z+F IMAGER 5010C and 5010X, with which to perform color scans even in poorly lit areas.
The high energy efficiency of the Z+F SmartLight allows the Z+F IMAGER laser scanner to maintain high performance. 5010C/5010X over time.
The Z+F SmartLight precisely follows the vertical movement of the i-Cam and guarantees excellent lighting conditions up to 10 m. thanks to its luminous flux of 1,000 lm.
